GU-CI-AC4614E

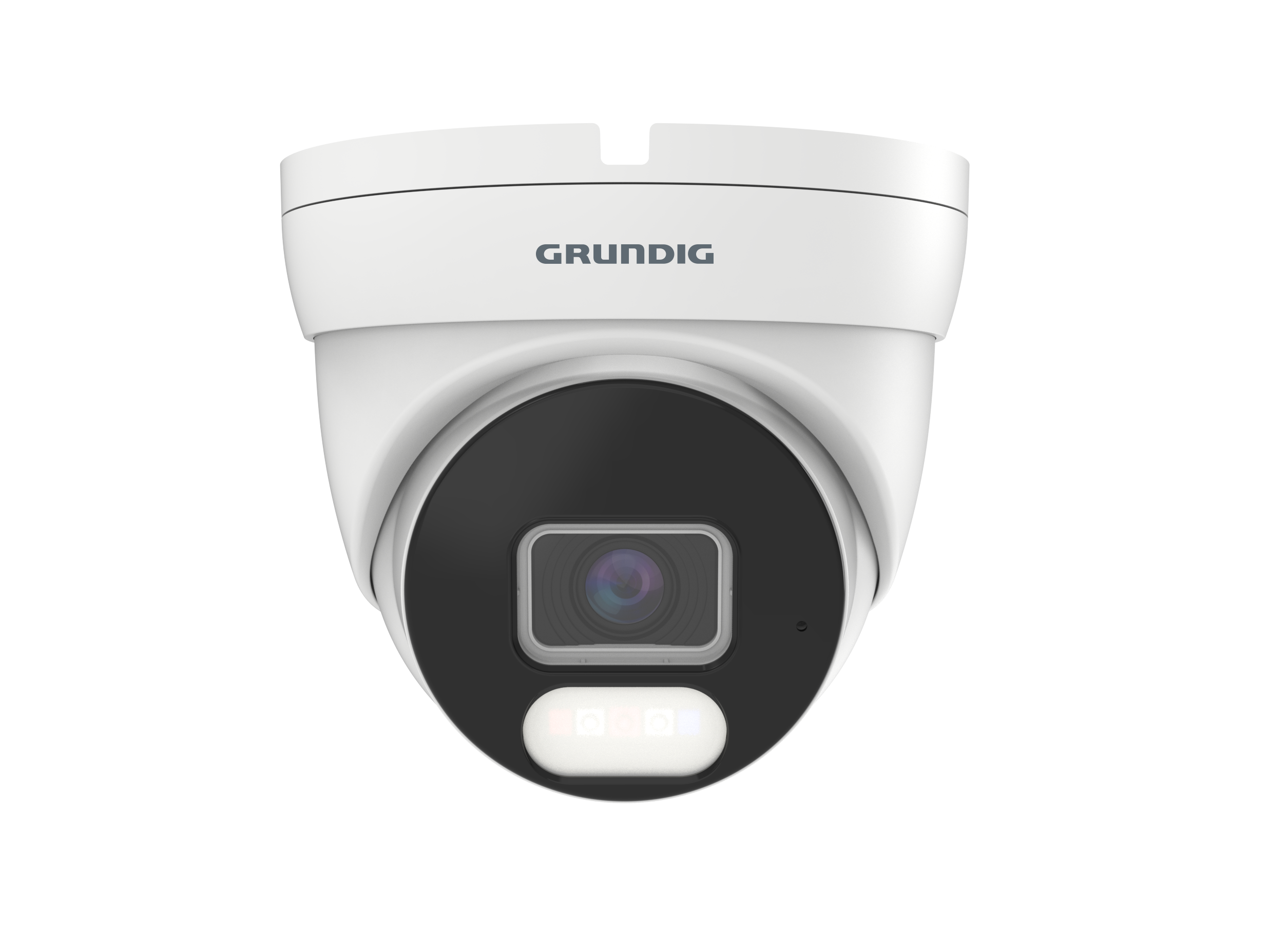

4 MP Turret IP-Camera 2.8 mm

Add to Wishlist
Add to Compare

Reduction of unwanted alarms (false alarms) by classifying target objects using deep learning algorithms. This significantly reduces false alarms generated by objects other than people or vehicles. This makes finding events easier and saves hard drive capacity
Built-in microphone
Smart Illumination with White Light and IR Light
Support Dual Power PoE/DC12V

Add to Wishlist
Add to Compare

Specifications

Camera
- Image Sensor 1/3" progressive Scan CMOS
- Resolution (MP) 4 MP
- Video Resolution 2560 x 1440
- Sensitivity Colour 0.004 Lux @ F1.6 (AGC ON)
- Sensitivity B/W 0 Lux LED IR on
- Shutter Speed 1/5 ~ 1/20000 s
- Slow Shutter Support
- White Balance Auto, Manual
Lens
- Lens Focal Length 2.8 mm
- Iris F-Number F1.6
- Lens Drive Type Fixed Iris
- Field of View 96° (horizontal), 52° (vertical), 113° (diagonal)
Illuminator
- Max. IR Distance Up to 25 m
- White Light Distance Up to 20 m
Video
- Col/B&W Auto, Color, Removable IR-Cut Filter (ICR)
- Wide Dynamic Range Digital WDR
- Image Enhancement 3D DNR
- Image Settings Rotate mode, Saturation, Brightness, Contrast, Sharpness and white balance adjustable by client software or web browser
- Day/Night Switch Support auto, scheduled, day, night
Frame Rate
- Main Stream 50 Hz: 25 fps (2560 x 1440) 60 Hz: 25 fps (2560 x 1440)
- Sub- Stream 50 Hz: 25 fps (640 × 480) 60 Hz: 25 fps (640 × 480)
Network
- Functions Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
- Video Compression H.264, H.265
- Bit Rate 512 Kbps ~ 4 Mbps
- SD Memory Built-in Micro SD up to 512 GB, NAS (Support NFS, SMB/CIFS)
- Network Protocol TCP/IP, IPv4, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, NTP, SMTP
- Cyber Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC-address)
I/O Interface
- Audio Input/Output Built-in microphone
- Network Interface 1x 10, 100 Base T (Ethernet), TX (RJ-45)
Intelligent Functions
- Motion Detection On, Off, Area Setting, Sensitivity
- People & Vehicle Detection Adjustable whether people, motorized or non-motorized vehicles should be detected.
- Intrusion Detection People, motorized vehicles or non-motorized vehicles, enter, exit or drive over a predefined virtual area, up to 4 rules are supported
- Line Crossing Cross a pre-defined virtual line with target classification Pedestrian, Motor vehicle and non-motozed Vehicle. 4 different rules can be configured.
- Region Entrance Enter a pre-defined virtual region from the outside place
- Region Exiting Exit from a pre-defined virtual region
- Limits of intelligent functions Only one of the AI functions can be selected at a time
- Event Source Video tampering, network disconnected, IP address conflicted, motion, various AI functions, sudden audio increase-decrease
- Event Action Send E-mail, trigger alarm output, notify surveillance C-WERK, upload to FTP/NAS, trigger SD-card recording and/or image capture.
Approvals
- Protection Rating IP67 (IEC 60529-2013)
- Regulation CE, EAC, FCC, RoHS Compliant
- Standard ONVIF, SDK/API
- MTBF at 25° C >60.000 hours
Environmental
- Operating Temperature -35 °C ~ 60 °C (-31 °F ~ 140 °F)
- Humidity Less than 90%, non condensing
Electrical
- Supply Voltage 12 VDC, PoE (IEEE 802.3af)
- Power Consumption Max. 5.5 W
Mechanical
- Material Aluminium alloy
- Mount Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360°, 3-Axis Adjustment
- Dimensions Ø 71 x 151 mm (Ø 2.8 × 5.9 inch)
- Weight 400 g (0.88 lb)
Packaging
- Package Dimensions 110 x 110 x 105 mm (4.3 x 4.3 x 4.1 inch)
- Package Weight 500 g (1.1 lbs)
- Packaging Unit 30
- Bulk Package Dimensions 445 x 335 x 270 mm (17.5 x 13.2 x 10.6 inch)
- Bulk Package Weight 15000 g (33.1 lbs)
