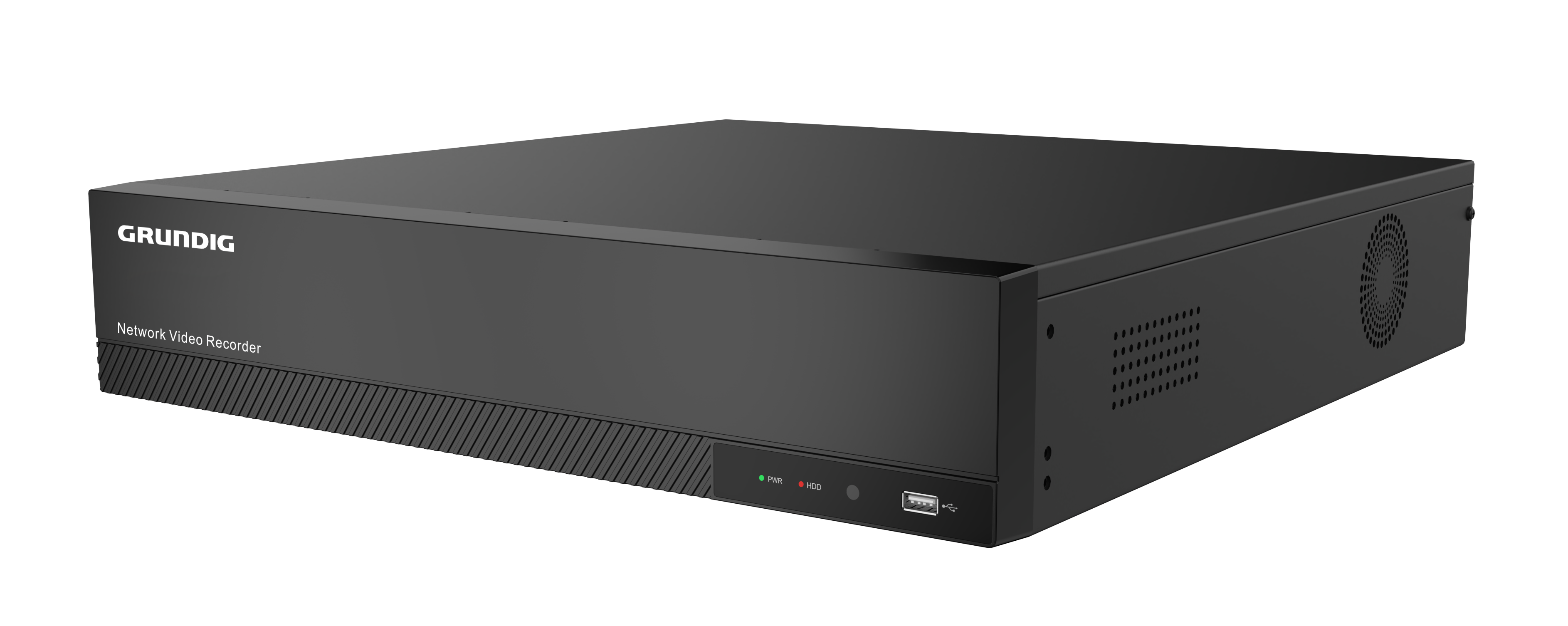

GU-RN-CP8864N

64 Channel Video Recorder

Add to Wishlist
Add to Compare

Many intelligent functions: deep learning distinguishing between human and vehicles, detection of line crossing, intrusion, queue length, crowd density, lost objects and display of heat map. Recognition of car license plates and faces including allowed and blocked lists. Counting of different Objects.
Hot Spare Mode - working as Failover Server for another NVR
RAID configuration
Video recording with NAS System and Local HDD

Add to Wishlist
Add to Compare

Specifications

Video
- IP Inputs 64 channels
- Privacy zones multiple zones (min. 4), depending on camera
Recording / Playback
- Recording Bandwidth 640 Mbit/s
- Outgoing Bandwidth 640 Mbit/s
- Recording Resolution 12 MP, 8 MP, 5 MP, 3 MP, 1080P, 960P, 720P
- Recording Mode Continuous, Event Alarm, Motion, Video Loss, Schedule
- Search Mode Date, Time, Event Alarm, Motion, Search Backup
- Smart Search Function Search for people, motorized vehicles, non-motorized vehicles, intrusion and line crossing, thumbnails, tags, faces and characteristics, attendance, visit frequency and license plates
- Playback Synchronised playback of max. 16 cameras
- Frame Rate(R) 4K: 240fps, 4MP: 480fps, 2MP: 960fps
Audio
- Audio Compression G.711
- Audio Detection Detects unusual noises: dogs barking, babies crying, gunshots, sudden sound increase and decrease
General
- External Backup USB HDD, USB Memory, Network
- Max. Storage Capacity Up to 18 TB capacity for each HDD (Enterprise-Class)
- Languages Czech, Dutch, English, Finnish, French, German, Italian, Portuguese, Spanish, Russian, Turkish, Polish
- Log File Support Events, macros, changes, activities per user
- PTZ Control Pan, Tilt, Zoom, Preset set and call
- Basic Internal Storage No
- Accessories included Mouse, Sata cable, 19 inch rack mount kit
Network
- Number of Clients Up to 32, 20 simultaneously
- Functions Automatic detection of connected devices in the network, real-time monitoring, synchronous playback of video footage from multiple cameras, playback via timeline, fast, slow, forward and reverse, multi-level user rights, fisheye dewarping, privacy mask.
- Video Compression H.264, H.264+, H.265, H.265+
- Cyber Security Different password levels, password protection, password change prompt at first startup, complicated password, HTTPS encryption, digest authentication for HTTP/HTTPS, IP address filter, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.0, TLS 1.1 & TLS 1.2, TLS 1.2 with updated cipher suites including AES 256 encryption, Brute Force Delay Protection of 180 s after 5 login attempts, Signed Firmware.
- Remote Connections 32
- Streaming Method Unicast, Multicast
I/O Interface
- RAID RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
- HDMI Output HDMI1, 2 & 3: 3840 x 2160 (EDID/4K), 2560 x 1440, 1920 × 1080, 1440 x 900, 1280 x 1024, 1280 x 720, 1024 x 768 HDMI4: 1920 × 1080, 1440 x 900, 1280 × 1024, 1280 × 720, 1024 × 768
- Audio Input/Output 1-ch audio input and 1-ch audio output
- Alarm Input/Output 16/4
- Harddisk bay 8 x SATA III, 1 x eSATA
- Network Interface 2x 100, 1000 Base T, TX (RJ-45)
- Serial Interface(s) Front panel: 1× USB 2.0, Rear panel: 2× USB 3.0, 1x RS-485, 1x RS-232
Intelligent Functions
- Motion Detection Adjustable whether people, motorized or non-motorized vehicles or only movements should be detected. The detection area and sensitivity can also be adjusted.
- People & Vehicle Detection Adjustable whether people, motorized or non-motorized vehicles should be detected.
- Intrusion Detection People, motorized vehicles or non-motorized vehicles, enter, exit or drive over a predefined virtual area, up to 4 rules are supported
- Line Crossing People, motorized vehicles or non-motorized vehicles cross a pre-defined virtual line, up to 4 rules are supported
- Object Removal Detects objects left over or lost in the pre-defined region such. In this case an alarm notification or signal will be sent automatically and in real time.
- Object Counting People, motorized vehicles, non-motorized vehicles or other movements are counted when crossing a virtual line and the result is displayed on the screen in real time
- Face Detection Human face appears in the image can be detected and trigger event action
- Face Recognition Detects and recognizes faces by comparing them to stored portrait images. Actions can be triggered via the allowed, blocked and other list
- License Plate Recognition Detects and recognizes car number plates. Data- import- export function, actions can be triggered via the allowed, blocked and other list
- Heat Map Visualizes the number of people in the surveillance area over a period of time with a simple and user-friendly color scheme
- Queue Length Detection Counts people in a predefined area and measures service time. The area, the maximum number of people in it and the maximum service time can be set
- Crowd Density Detection Counts people in a predefined area. The area, the maximum number of people in it can be set
- Tamper Protection Detection of scene change, defocus, sudden audio increase/decrease or audio loss.
- Limits of intelligent functions Some functions are only available if supported by the connected camera. Some features are limited by the number of supported channels.
- Event Source Motion, AI Functions, Video Loss, Network Interruption, Video Tampering, HDD Full, HDD Error, Audio Detection and Alarm Inputs
- Event Action Send e-mail, trigger alarm output, push notification for GSVM App and C-WERK, upload to FTP/Cloud, trigger HDD recording and/or image capture, show message on screen, PTZ linkage, voice prompt, buzzer
Approvals
- Regulation CE, EAC, FCC, RoHS Compliant
- Standard ONVIF (Profile S, Profile G, Profile T), SDK/API
- MTBF at 25° C >60.000 hours
Environmental
- Operating Temperature -10 °C ~ +50 °C (+14°F~ + 122°F)
- Humidity Less than 90%, non condensing
Electrical
- Supply Voltage 100 ~ 240 VAC, 50Hz / 60Hz
- Power Consumption ≤ 8 W without harddisk
Mechanical
- Dimensions 440 × 460 × 89 mm (17.3 × 18.11 × 3.5 inch)
- Weight 7500 g (16.5 lb)
Packaging
- Package Dimensions 555 x 535 x 210 mm (21.9 x 21.1 x 8.3 inch)
- Package Weight 9000 g (19.8 lbs)
- Packaging Unit 1
