GD-RN-AT416128N

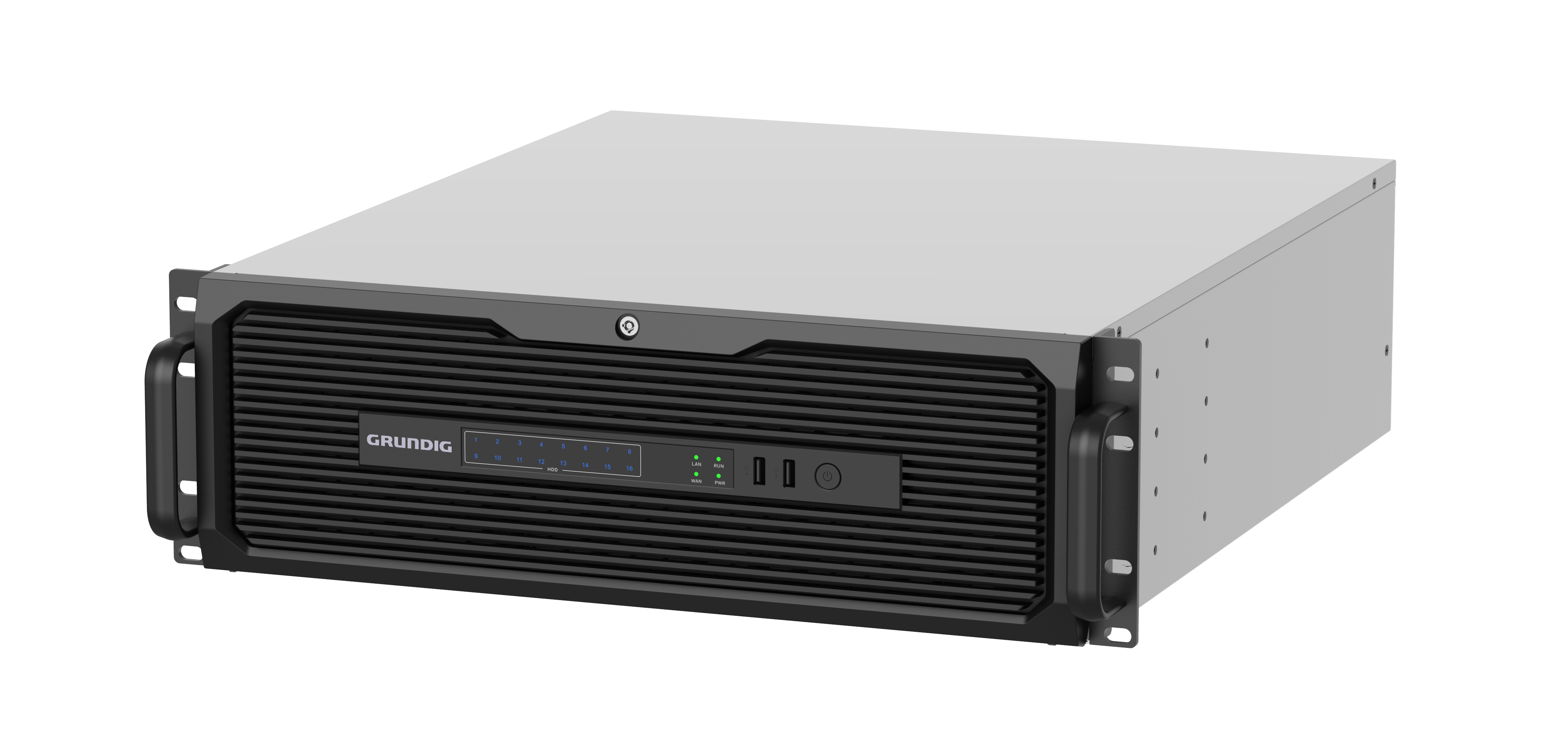

128 Channel Video Recorder designed for ATEX IPC

Add to Wishlist
Add to Compare

Intelligent Video Analytics Function
Supports fisheye camera expansion mode
Local user interface on 2 video outputs, with independant multivision
8K video display on main HDMI
RAID configuration
Video recording with NAS System and Local HDD
eSATA interface: add external Hard drive to increase record capacity

Add to Wishlist
Add to Compare

Specifications

Video
- IP Inputs 128 channels
Recording / Playback
- Recording Bandwidth 768 Mbps in
- Outgoing Bandwidth 768 Mbps out
- Recording Resolution 12 MP, 8 MP, 5 MP, 3 MP, 1080P, 960P, 720P
- Recording Mode Continuous, Event Alarm, Motion, Video Loss, Schedule
- Search Mode Date, Time, Event Alarm, Motion, Search Backup
- Playback Synchronised playback of max. 16 cameras
General
- External Backup USB HDD, USB Memory, USB DVD-R, Network
- Max. Storage Capacity Up to 16 TB capacity for each HDD, hot swappable
- PTZ Control Pan, Tilt, Zoom, Preset set and call
- Basic Internal Storage No
Network
- Video Compression H.264, H.264+, H.265, H.265+
- Streaming Method Unicast, Multicast
- Network Protocol TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Remote Connections 8
I/O Interface
- RAID RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
- HDMI Output HMDI1: 7680 × 4320, 3840 × 2160, 1920 × 1080, 1280 × 1024, 1024 × 768 HDMI2: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1024 × 768 HDMI3: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1024 × 768 HDMI4: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1024 × 768 VGA: 1920 × 1080, 1280 × 1024, 1024 × 768
- Audio Input/Output 1-ch audio input and 1-ch audio output
- Alarm Inputs 24
- Alarm Outputs 8
- Harddisk bay 16 x SATA III, 2 x e-SATA
- Network Interface 2x RJ45 2.5 Gbit LAN
- Serial Interface(s) 1x RS-232, 1x RS-485
- Interfaces 2 × USB 2.0, 2 x USB 3.0
Intelligent Functions
- Deep Learning Analytics 4-ch intrusion detection, support the accurate detection of human and vehicle (by NVR)
- Motion Detection On, Off, Area Setting
- Event Source Motion, Alarm, Video Loss, System
- Event Action Pop-Up, Relay, E-Mail, FTP, Network, Buzzer, PTZ Preset
Approvals
- Regulation CE, EAC, FCC, RoHS Compliant
- Standard ONVIF (Profile S, Profile G), SDK/API
Environmental
- Humidity Less than 90%, non condensing
Electrical
- Supply Voltage 100 to 240 VAC (50/60Hz)
- Power Consumption ≤ 70W without hard disks
Mechanical
- Chassis 19-inch rack-mounted, 3U
- Weight 10850 g (23,92 lb)
Packaging
- Package Dimensions Without rack ears: 436.8 × 521.0 × 151.6 mm (17.20 × 20.51 × 5.97 in) With rack ears: 481.8 × 545.2 × 151.6 mm (18.97 × 21.47 × 5.97 in)
- Package Weight 18200 g (40.1 lbs)
- Packaging Unit 1
