GD-CI-DT4537T

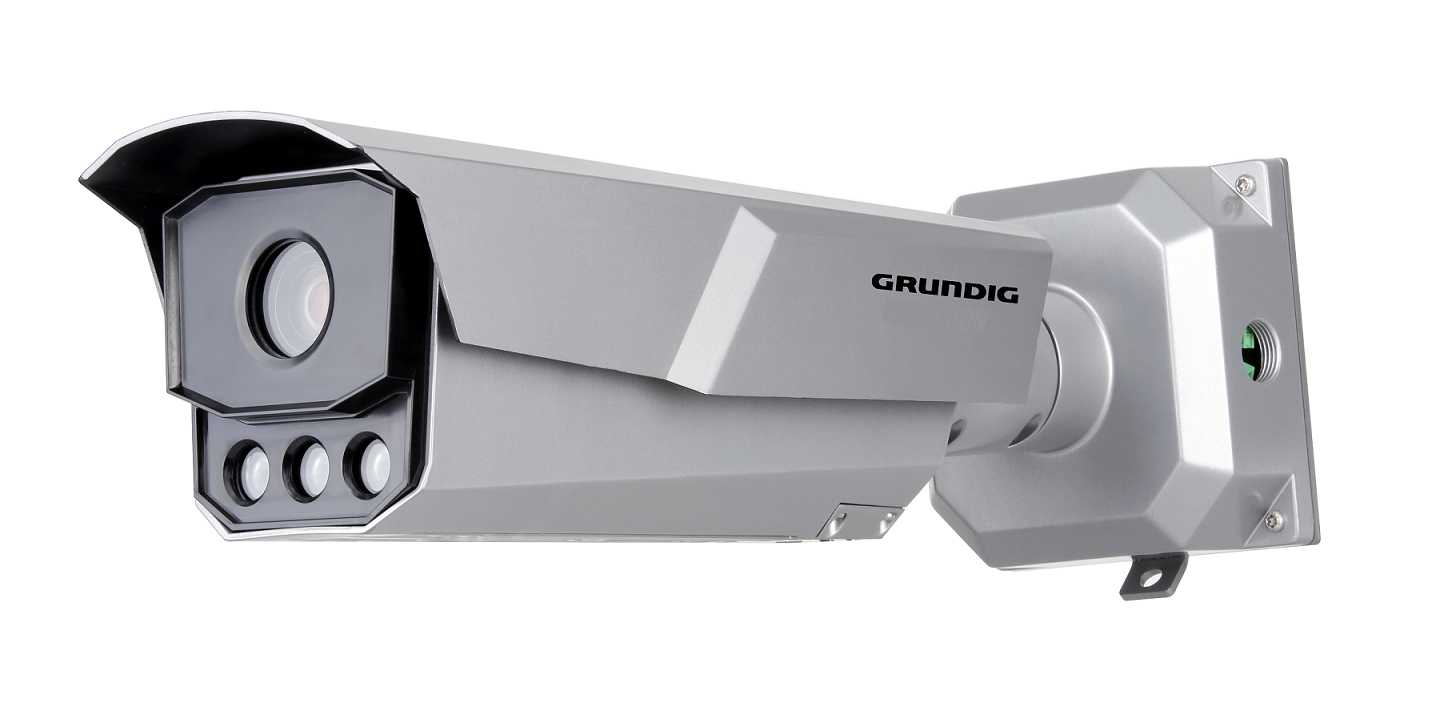

4 MP Bullet IP-Camera 8~32 mm

Add to Wishlist
Add to Compare

Deep Learning - Recognition of vehicles: Supports vehicle recognition and license plate recognition, recognizes and tracks predefined vehicles, latitude-longitude information and license plate information are also recorded / uploaded.
Motorized Zoom Lens: f = 8 - 32 mm
Detects vehicles without license plates and reads license plates of motorcycles
License Plate Recognition (LPR) software included. Data import and export function, blocklist and whitelist or extended analytics functions
Ultra Low Light CMOS Sensor, Smart-IR Control
0 Lux: Integrated LED IR Illuminator viewable distance up to 50m

Add to Wishlist
Add to Compare

Specifications

Camera
- Image Sensor 1/1.8" progressive Scan CMOS
- Resolution (MP) 4 MP
- Video Resolution 2688 × 1520
- Sensitivity Colour 0.0005 Lux @ F1.2 (AGC ON)
- Sensitivity B/W 0.0001 Lux @ F1.2 (AGC ON), 0 Lux with IR
- Shutter Speed 1/25 ~ 1/100,000 s
- Slow Shutter Support
- White Balance Manual, AWB1, AWB2, Locked WB, Fluorescente lamp, Incandescent lamp, Warm light, Natural light
Lens
- Lens Focal Length 8 ~ 32 mm motorized, autofocus
- Iris F-Number F1.7
- Lens Drive Type DC Auto Iris
- Focus Adjustment Auto, Manual, Semi-automatic
- Field of View 42° ~ 15° (horizontal), 23° ~ 9° (vertical), 49° ~ 17° (diagonal)
Illuminator
- Max. IR Distance Up to 50 m
- Wavelength 850 nm
Video
- Col/B&W On, Off, Auto, IR-cut filter removable (ICR)
- Wide Dynamic Range 140 dB
- Image Enhancement BLC, 3D DNR
- Image Settings Saturation, Brightness, Contrast, Sharpness, AGC and White Balance adjustable by client software or web browser
- Day/Night Switch Support auto, scheduled, day, night
General
- Accessories included Junction box
Frame Rate
- Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 704 x 576, 352 x 288) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 704 x 576, 352 x 288)
- Sub- Stream 50 Hz: 25 fps (1920 x 1080, 1280 x 720, 704 x 576, 352 x 288) 60 Hz: 30 fps (1920 x 1080, 1280 x 720, 704 x 576, 352 x 288)
- 3rd Stream 50 Hz: 25 fps (1280 x 760, 704 × 576, 352 × 288) 60 Hz: 30 fps (1280 x 760, 704 × 576, 352 × 288)
Network
- Functions One-key reset, anti-flicker, three streams, heartbeat, password protection, watermark
- Video Compression H.264, H.265, MJPEG
- H.264 code profile Baseline Profile / Main Profile / High Profile
- Bit Rate 32Kbps ~ 16Mbps, adjustable
- SD Memory Micro SD/SDHC/SDXC card slot with ANR (up to 512G), NAS (Support NFS, SMB/CIFS)
- Client software C-WERK Viewer, SCMS, IOS App, Android App (SCMS)
- Web Browser IE9-11, Mozilla Firefox V41+, Google Chrome V61+, Edge
- Network Protocol TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, SSL/TLS, ARP, SFTP
- Cyber Security Password protection, Complicated password, HTTPS encryption, 802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5), Watermark, IP-address filter, Basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, Control timeout settings, Security audit log, TLS 1.2, TLS 1.3, Host authentification (Mac address)
I/O Interface
- Audio Input/Output 1-ch audio input and 1-ch audio output
- Alarm Input/Output 1, 1
- Network Interface 1x 10, 100, 1000 Base T, TX (RJ-45)
- Interfaces 1x RS485, 1x Wiegand
Intelligent Functions
- Event Source Vehicle detector exeption, Traffic light detector exception, Network disconnected, IP address conflicted, HDD error
Approvals
- Protection Rating IP67 (IEC 60529-2013), IK10 (IEC 62262:2002), NEMA 4X (NEMA 250-2018)
- Regulation CE, FCC, RoHS Compliant
- Standard ONVIF (Profile S, Profile G, Profile T, Profile M), SDK/API
Environmental
- Operating Temperature -30 °C ~ +70 °C (-22 °F ~ 158 °F)
- Humidity Less than 95%, non condensing
Electrical
- Supply Voltage 12 VDC, 24 VAC, PoE (IEEE 802.3at)
- Power Consumption Max. 14.5 W
Mechanical
- Material Aluminium alloy
- Dimensions 428 × 120 x 133 mm ( 16.9 × 4.7 × 5.2 inch)
- Weight 2900 g (6.39 lb)
