GU-KB-AP4450M

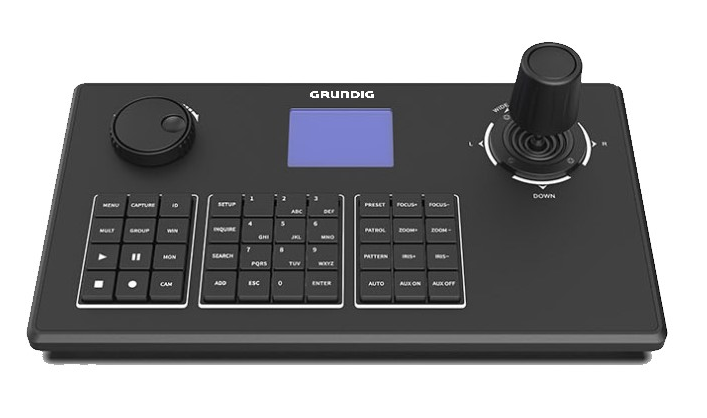

System Keyboard with LCD Display

Display
- LCD Panel size 6.5 cm (2.6") Diagonal AM-TFT LED Backlight
General
- PTZ Control 4-axis joystick, PTZ-, focus- & iris-control, setting and calling Presets, Patterns & Patrols, Auto-Scan, Auto-Pan, Wiper, AUX
- Accessories included Power Adapter
I/O Interface
- Network Interface 1x 10, 100 Base T, TX PoE (RJ-45)
Approvals
- Regulation CE, FCC, RoHS Compliant
Environmental
- Operating Temperature 0°C ~ 55°C (32°F ~ 131°F)
- Humidity Less than 90%, non condensing
Electrical
- Supply Voltage 12 VDC, PoE (IEEE 802.3af)
- Power Consumption Max. 4.5 W
Mechanical
- Dimensions 321 × 109 × 179 mm (12.7 × 4.3 × 7.1 inch)
- Weight 1650 g (3.3 lb)
Packaging
- Package Dimensions 354 x 135 x 221 mm (13.9 x 5.3 x 8.7 inch)
- Package Weight 2300 g (5.1 lbs)
