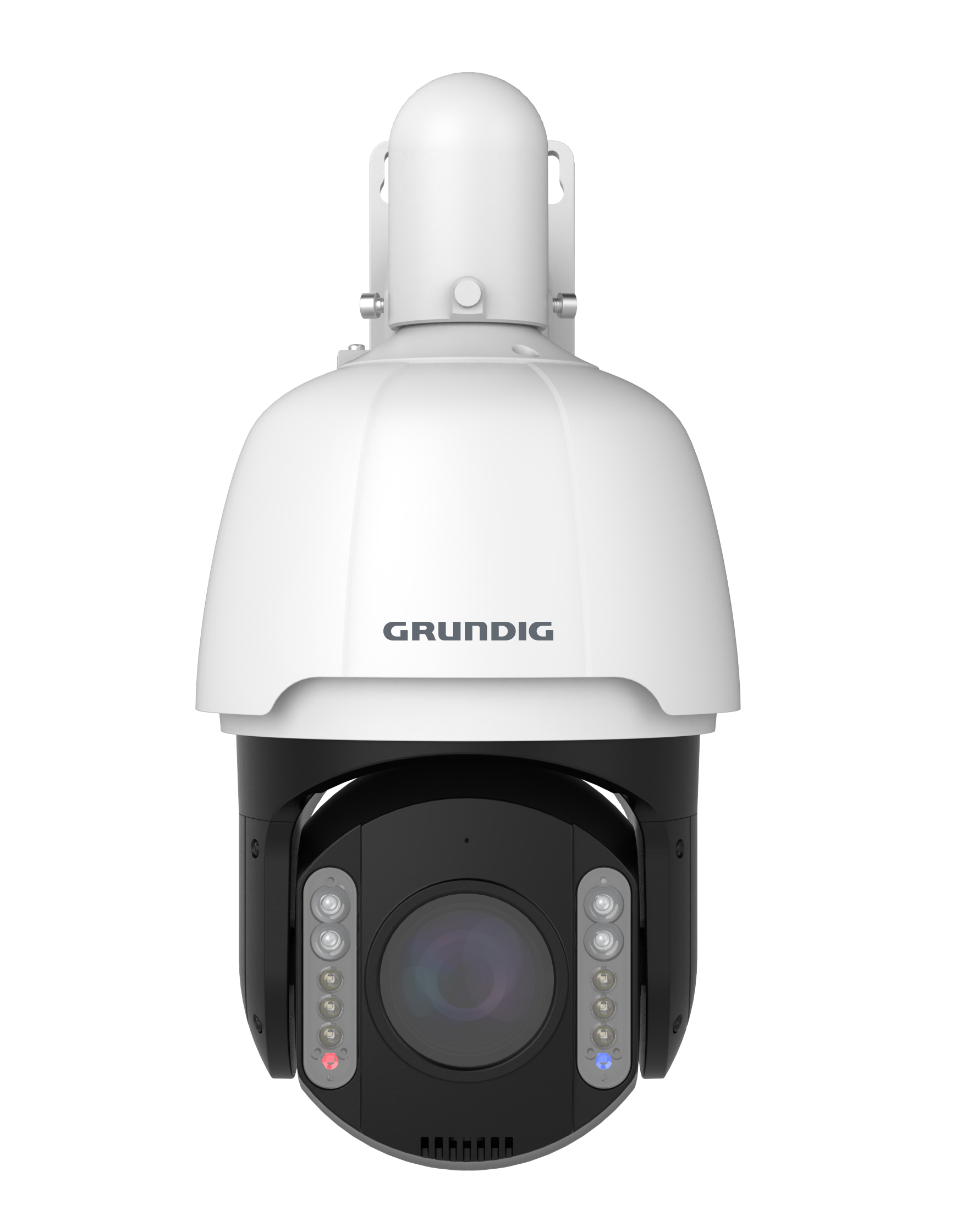

GU-CI-AP8744P

8 MP PTZ IP-Camera 37x Zoom

Add to Wishlist
Add to Compare

8 Megapixel IP Camera with real time video streaming
Reduction of unwanted alarms (false alarms) by classifying target objects using deep learning algorithms. This significantly reduces false alarms generated by objects other than people or vehicles. This makes finding events easier and saves hard drive capacity
Many AI functions integrated such as face detection, intrusion detection, object counting, queues, heat map and much more
Built-in microphone
0 Lux: Integrated LED IR Illuminator viewable distance up to 200m (Detection)
Built-in Speaker

Add to Wishlist
Add to Compare

Specifications

Camera
- Image Sensor 1/1.8" progressive Scan CMOS
- Resolution (MP) 8 MP
- Video Resolution 3840 × 2160
- Sensitivity Colour 0.0005 Lux @ F1.6 (AGC ON)
- Sensitivity B/W 0 Lux LED IR on
- Shutter Speed 1/5 ~ 1/20000 s
- Slow Shutter Support
- White Balance Auto, Manual
Lens
- Lens Focal Length 5.5 ~ 202 mm motorized, autofocus
- Iris F-Number F1.6
- Optical Zoom Ratio 37x
- Digital Zoom 16x
- Field of View 60° ~ 2.3° (horizontal), 35.5° ~ 1.3° (vertical), 67.5° ~ 2.7° (diagonal)
Illuminator
- Max. IR Distance Up to 200m
- White Light Distance Up to 25 m
Video
- Col/B&W Auto (Electronic) , Colour , B&W
- Wide Dynamic Range 120 dB
- Image Enhancement BLC, 3D DNR, HLC, DIS
- Image Settings Rotate mode, Saturation, Brightness, Contrast, Sharpness and white balance adjustable by client software or web browser
- Day/Night Switch Support auto, scheduled, day, night
- Privacy zones 4 zones, rectangle
Audio
- Audio Compression G.711
- Audio Detection Detects unusual noises: dogs barking, babies crying, gunshots, sudden sound increase and decrease
General
- Accessories included Wall mount bracket, Power supply
Frame Rate
- Main Stream 50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2592 × 1944, 2592 x 1520, 2304 x 1296, 1920 × 1080, 1280 x 960, 1280× 720) 60 Hz: 30 fps (3840 × 2160, 3072 × 1728, 2592 × 1944, 2592 x 1520, 2304 x 1296, 1920 × 1080, 1280 x 960, 1280× 720)
- Sub- Stream 50 Hz: 25 fps (1920 x 1080, 1280 x 720, 640 x 480, 320 x 240) 60 Hz: 30 fps (1920 x 1080, 1280 x 720, 640 x 480, 320 x 240)
- 3rd Stream 50 Hz: 25 fps (640 x 480, 320 x 240) 60 Hz: 30 fps (640 x 480, 320 x 240)
Network
- Functions Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, front glass heater
- Video Compression H.264, H.264+, H.265, H.265+ , MJPEG
- H.264 code profile Baseline Profile / Main Profile / High Profile
- Bit Rate 8 Kbps to 16 Mbps
- SD Memory Built-in Micro SD up to 512 GB, NAS (Support NFS, SMB/CIFS)
- Network Protocol TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, SNMP, 802.1X, IPv4/IPv6, PPPoE
- Cyber Security Password protection, complicated password, HTTPS encryption, digest authentication for HTTP/HTTPS , IP address filter, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.0, TLS 1.1 & TLS 1.2, TLS 1.2 with updated cipher suites including AES 256 encryption, Brute Force Delay Protection, Signed Firmware.
Pan Tilt Zoom
- Number of Patrols 4 patrols, up to 32 presets for each patrol
- Number of Pattern 4 pattern scans
- Number of Preset 255
- Pan Speed Configurable, from 0.6°/sec to 200°/sec, Preset Speed: 200°/sec
- Tilt Speed Configurable from 0.6°/sec to 90°/sec, Preset Speed: 100°/sec
- Range Panning 360° endless
- Range Tilting -20° ~ 90°
- Tracking Functions Manual Tracking, Auto Tracking
I/O Interface
- CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω) , resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio Input/Output 1 Input: line in or mic in & built-in microphone, 1 Output: line out & built in speaker, mono sound
- Alarm Input/Output 1, 1
- Network Interface 1x 10, 100 Base T (Ethernet), TX (RJ-45)
- Serial Interface(s) 1x RS-485
Intelligent Functions
- Motion Detection Adjustable whether people or motorized vehicles or only movements should be detected. The detection area and sensitivity can also be adjusted.
- People & Vehicle Detection Adjustable whether people, motorized or non-motorized vehicles should be detected.
- Intrusion Detection People, motorized vehicles or non-motorized vehicles, enter, exit or drive over a predefined virtual area, up to 4 rules are supported
- Line Crossing Cross a pre-defined virtual line with target classification Pedestrian, Motor vehicle and non-motozed Vehicle. 4 different rules can be configured.
- Object Removal Detects objects left over or lost in the pre-defined region such. In this case an alarm notification or signal will be sent automatically and in real time.
- Object Counting People, motorized vehicles, non-motorized vehicles or other movements are counted when crossing a virtual line and the result is displayed on the screen in real time
- Face Detection Human face appears in the image can be detected and trigger event action
- License Plate Recognition Detects and recognizes car number plates. (Data- import- export function, actions can be triggered via the allowed, blocked and other list, only supported with insert SD-Card).
- Heat Map Visualizes the number of people in the surveillance area over a period of time with a simple and user-friendly color scheme
- Queue Length Detection Counts people in a predefined area and measures service time. The area, the maximum number of people in it and the maximum service time can be set
- Crowd Density Detection Counts people in a predefined area. The area, the maximum number of people in it can be set
- Limits of intelligent functions Only one of the AI functions can be selected at a time
- Event Source Video tampering, motion, various AI functions, sudden audio increase-decrease
- Event Action Send E-mail, trigger alarm output, notify surveillance C-WERK, upload to FTP/NAS, trigger SD-card recording and/or image capture.
Approvals
- Protection Rating IP67 (IEC 60529-2013), IK10 (IEC 62262:2002), NEMA 4X (NEMA 250-2018)
- Regulation CE, FCC, RoHS Compliant
- Standard ONVIF (Profile S, Profile G, Profile T, Profile M), SDK/API
Environmental
- Operating Temperature -30 °C ~ 60 °C (-22 °F ~ 140 °F)
- Humidity Less than 90%, non condensing
Electrical
- Supply Voltage 36 VDC, 24 VAC, PoE (IEEE 802.3bt)
- Power Consumption Max. 45 W
Mechanical
- Material Aluminium alloy
- Dimensions Ø 206 x 338 mm (Ø 8.13 x 13.3 inch)
- Weight 5200 g (11.5 lb)
Packaging
- Package Dimensions 310 x 305 x 590 mm (13.2 x 12 x 23.2 inch)
- Package Weight 9000 g (19.8 lbs)
- Packaging Unit 1
