GD-CI-AT3637V

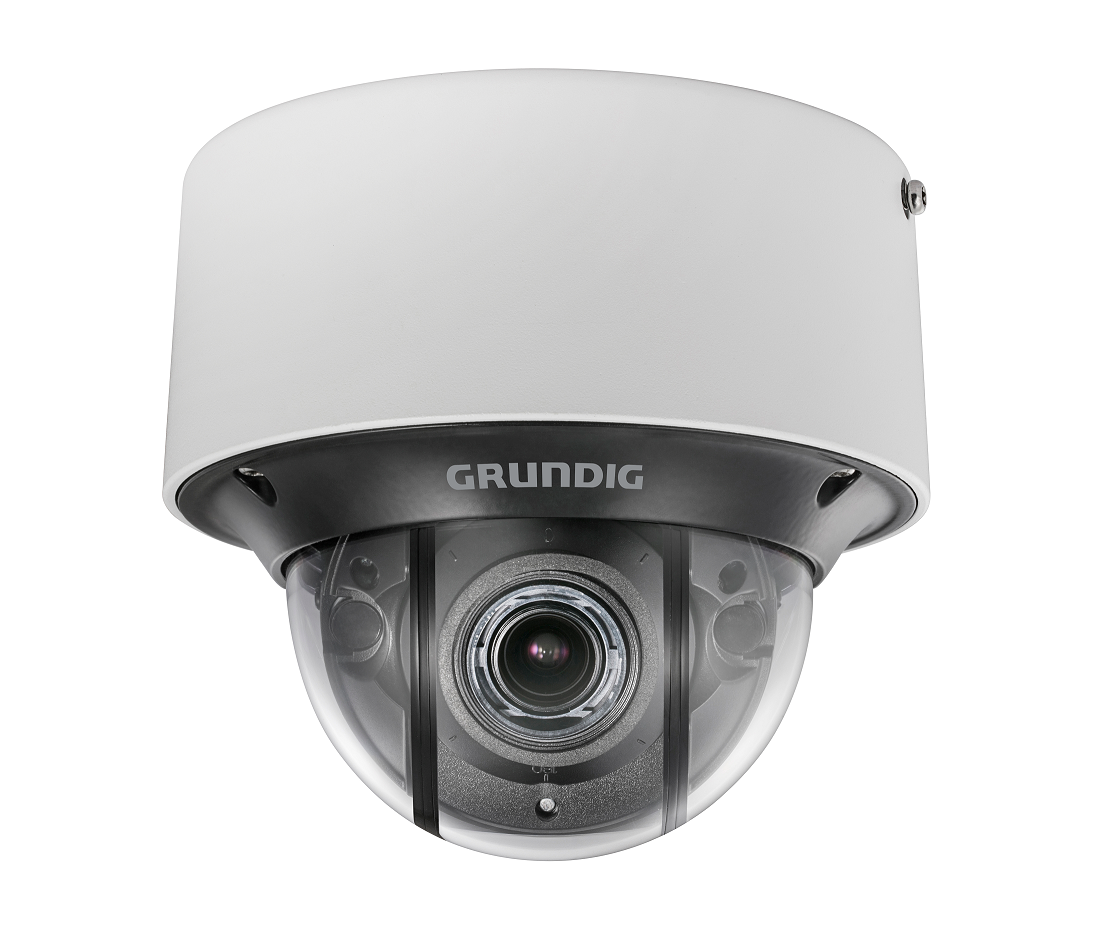

3 MP Fixed Dome IP-Camera 2.8~12mm Motorized

Add to Wishlist
Add to Compare

3 Megapixel IP Camera with real time video streaming
Motorized Varifocal Lens: f = 2.8 - 12 mm
Audio Communication & Alarm Input / Output
Split dome cover camera removes the IR reflection problem from the dust or moisture on the dome cover
3 Axis Gimbal for wall and ceiling mount
0 Lux: Integrated LED IR Illuminator viewable distance up to 30m

Add to Wishlist
Add to Compare

Specifications

Camera
- Image Sensor 1/2.8" progressive Scan CMOS
- Resolution (MP) 3 MP
- Video Resolution 2048 × 1536
- Sensitivity Colour 0.005 Lux @ F1.2 (AGC ON)
- Sensitivity B/W 0.0005 Lux @ (F1.2 (AGC ON)) , 0.0007 Lux @ (F1.4 (AGC ON)) , 0 Lux with IR
- Shutter Speed 1 ~ 1/100,000 s
- Slow Shutter Support
- White Balance Manual, AWB1, AWB2, Locked WB, Fluorescente lamp, Incandescent lamp, Warm light, Natural light
Lens
- Lens Focal Length 2.8 ~ 12 mm motorized, autofocus
- Iris F-Number F1.4
- Lens Mount Ø14
- Lens Drive Type DC Auto Iris
Illuminator
- Max. IR Distance Up to 30 m
- Wavelength 850 nm
Video
- Col/B&W On, Off, Auto, IR-cut filter removable (ICR)
- Wide Dynamic Range 120 dB
- Image Enhancement BLC, 3D DNR, Defog, EIS, HLC
- Image Settings Rotate mode, Saturation, Brightness, Contrast, Sharpness and white balance adjustable by client software or web browser
- Day/Night Switch Support auto, scheduled, day, night, triggered by alarm in
Audio
- Audio Compression G.711ulaw/G.711alaw, G.722.1, G.726, MP2L2, PCM
- Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
- Environment Noise Filtering yes
Network
- Users 3 Levels: Administrator, Operator and User
- Number of Clients Up to 20 simultaneously
- Functions One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP-address filter
- Video Compression Main Stream: H.264, H.264+, H.265, H.265+ Sub-Stream: H.264, H.265, MJPEG Third Stream: H.264, H.265
- Region of Interest Support four fixed region for each stream, and dynamic face tracking
- H.264 code profile Baseline Profile / Main Profile / High Profile
- Bit Rate 32Kbps ~ 16Mbps, adjustable
- SD Memory Micro SD/SDHC/SDXC card slot with ANR (up to 128G), NAS (Support NFS, SMB/CIFS)
- Network Protocol TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SNMP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, PPPoE, Bonjour, SRTP, SFTP, SSL/TLS
I/O Interface
- Video Outputs 1 Test Monitor output (CVBS, 1 Vpp). Adapter cable with female BNC connector included.
- Audio Input/Output 1-ch audio input and 1-ch audio output
- Alarm Input/Output 2 inputs, 2 outputs (up to 24 VDC 1 A or 110 VAC 500mA )
Intelligent Functions
- Intelligent Video Analytics MD, PID, LCD, A-IN, A-OUT, SOD, FD, VTD, SD
- Intrusion Detection Enter and loiter in a pre-defined virtual region, up to 4 pre-defined virtual regions supported
- Line Crossing Cross a pre-defined virtual line, up to 4 pre-defined virtual lines supported
- Region Entrance Enter a pre-defined virtual region from the outside place
- Region Exiting Exit from a pre-defined virtual region
- Unattended Baggage Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
- Object Removal Objects removed from the pre-defined region, such as the exhibits on display
- Face Detection Human face appears in the image can be detected and trigger event action
- Tamper Protection Detection of scene change, defocus, sudden audio increase/decrease or audio loss.
- Event Source Video tampering, network disconnected, IP address conflicted, HDD full, HDD error, illegal login, motion detection
- Event Action Recording: Pre-event, post-event memory card and/or network storage. Picture upload: FTP, HTTP and NAS. Trigger E-mail notification: HTTP, ISAPI. Alarm output and notification to C-WERK VMS. Events are depending on schedule settings.
Approvals
- Protection Rating IP66 (IEC 60529-2013)
- Regulation CE, EAC, FCC, RoHS Compliant
- Standard ONVIF (Profile S, Profile G), SDK/API
Environmental
- Operating Temperature -40 °C ~ 60 °C (-40 °F ~ 140 °F)
- Humidity Less than 95%, non condensing
Electrical
- Supply Voltage 12 VDC, PoE (IEEE 802.3af)
- Power Consumption Max. 10 W
Mechanical
- Mount Pan: 0° to 355°, tilt: 0° to 70°, rotate: 0° to 355°, 3-Axis Adjustment
- Weight 1200 g (2.65 lb)
