GD-CI-BT8637TX

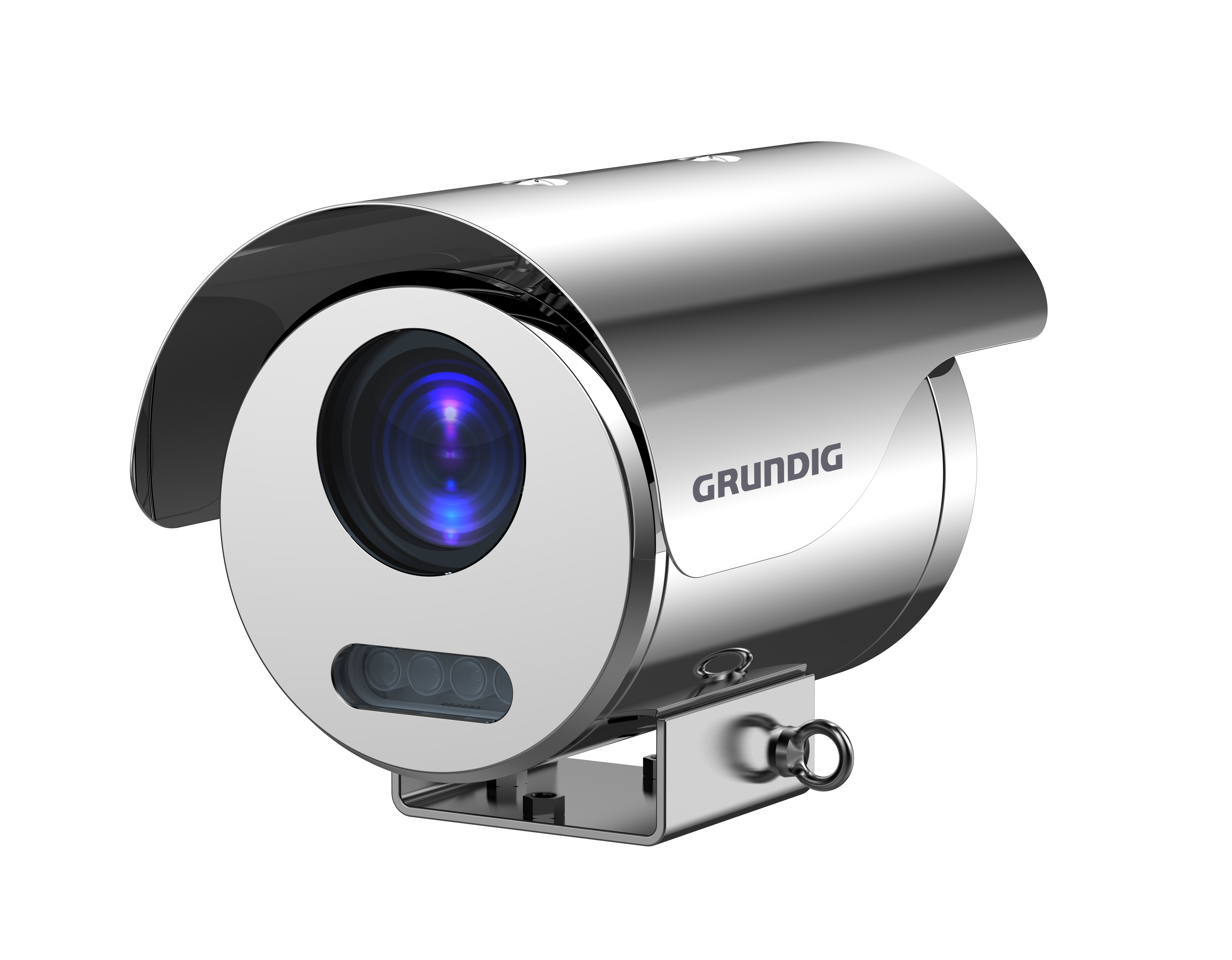

8 MP IP-Kamera 5–50 mm, ATEX, IP68

Add to Wishlist
Add to Compare

8 Megapixel IP Camera with real time video streaming
Deep Learning - Human and Vehicle Analysis: Self learning human and vehicle classification improves unwanted alarm filtering
Motorized Varifocal Lens: f = 5 - 50 mm
0 Lux: Integrated LED IR Illuminator viewable distance up to 100m
IP68 Certification

Add to Wishlist
Add to Compare

Specifications

Camera
- Image Sensor 1/2.8" progressive Scan CMOS
- Resolution (MP) 8 MP
- Video Resolution 3840 × 2160
- Sensitivity Colour 0.01 Lux @ F1.6 (AGC ON)
- Sensitivity B/W 0.005 Lux
- Shutter Speed 1/5 ~ 1/20000 s
- Slow Shutter Support
- White Balance Manual, AWB1, AWB2, Locked WB, Fluorescente lamp, Incandescent lamp, Warm light, Natural light
Lens
- Lens Focal Length 5 ~ 50 mm motorized varifocal lens
- Iris F-Number F2.0
- Lens Drive Type Auto Iris (DC)
- Field of View 51° ~ 8° (horizontal), 28° ~ 5° (vertical)
Illuminator
- Max. IR Distance Up to 100 m
- Wavelength 850 nm
Video
- Col/B&W Auto, IR-cut filter removable (ICR)
- Wide Dynamic Range 120 dB
- Image Enhancement BLC, 3D DNR, Defog, HLC
- Image Settings Rotate mode, Saturation, Brightness, Contrast, Sharpness and white balance adjustable by client software or web browser
- Day/Night Switch Support auto, scheduled, day, night
- Privacy zones 4 zones, rectangle
Audio
- Audio Compression G.711, RAW_PCM
General
- DRI Range Detection Range 187 to 1118 m Observe Range 75 to 447 m Recognition Range 37 to 224 m Identification Range 19 to 112m DORI (Detect, Observe, Recognize, and Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances.
Frame Rate
- Main Stream 50 Hz: 25 fps (3840 x 2160, 2592 x 1944, 2592 x 1520, 2304 x 1296, 1920 x 1080, 1280 x 720) 60 Hz: 30 fps (3840 x 2160, 2592 x 1944, 2592 x 1520, 2304 x 1296, 1920 x 1080, 1280 x 720)
- Sub- Stream 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 24 fps (704 × 480, 640 × 480, 352 × 240)
- 3rd Stream 50 Hz: 25 fps (640 x 480, 288 x 352, 320 x 240) 60 Hz: 25 fps (640 x 480, 288 x 352, 320 x 240)
Network
- Users 3 Levels: Administrator, Operator and User
- Number of Clients Up to 10 simultaneously
- Functions One-key reset, anti-flicker, five streams, heartbeat, mirror, password protection, privacy mask, watermark, IP-address filter
- Video Compression H.264, H.264+, H.265, H.265+
- Region of Interest 8 rectangle regions
- H.264 code profile Baseline Profile / Main Profile / High Profile
- Bit Rate 100 Kbps to 16 Mbps
- SD Memory Micro SD/SDHC/SDXC card slot with ANR (up to 1TB), NAS (Support NFS, SMB/CIFS)
- Client software C-WERK Viewer, SCMS, IOS App, Android App (SCMS)
- Web Browser Plug-in required live view: IE10/IE11 Non Plug-in live view: Chrome 57+, Mozilla Firefox 52+, EDGE 89+ Local Service: Chrome 57+, Firefox 52+, EDGE 89+
- Network Protocol TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SNMP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, PPPoE, Bonjour, SFTP, SRTP, SSL/TLS
- Cyber Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), Watermark, IP-address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, TPM 2.0, AES128/256
I/O Interface
- Audio Input/Output 1-ch audio input and 1-ch audio output
- Alarm Input/Output 1 alarm-input, 1 alarm-output
- Network Interface 1x 10, 100 Base T, TX PoE+ (RJ-45)
Intelligent Functions
- Deep Learning Analytics Line crossing detection, intrusion detection, human and vehicle object classification
- Object Classification Detects people, non-motorized vehicles and/or vehicles in full screen or a defined image section
- Intrusion Detection Enter and loiter in a pre-defined virtual region, up to 4 pre-defined virtual regions supported
- Line Crossing Cross a pre-defined virtual line, up to 4 pre-defined virtual lines supported
- Loitering People stay in a previously defined area for longer than the preset time
- People & Vehicle Detection Adjustable whether people, motorized or non-motorized vehicles should be detected.
- Motion Detection Adjustable whether people or motorized vehicles or only movements should be detected. The detection area and sensitivity can also be adjusted.
- Region Entrance Enter a pre-defined virtual region from the outside place
- Region Exiting Exit from a pre-defined virtual region
- Tamper Protection Scene change and defocus
- Event Source Video tampering, network disconnected, IP address conflicted, HDD full, HDD error, illegal login, motion detection
- Event Action Send E-mail, trigger alarm output, notify surveillance C-WERK, upload to FTP/NAS, trigger SD-card recording and/or image capture.
Approvals
- Protection Rating IP68 , IK10 ATEX: Ex II 2G Ex db op is IIC T6 Gb /Ex 2D tb op is IIIC T80°C Db, IECEx: Ex db op is IIC T6 Gb /Ex tb op is IIIC T80°C Db
- Regulation CE, FCC, RoHS Compliant
- Standard ONVIF (Profile S, Profile G, Profile T, Profile M), SDK/API
Environmental
- Operating Temperature -40 °C ~ 60 °C (-40 °F ~ 140 °F)
- Humidity Less than 95%, non condensing
Electrical
- Surge Protection TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
- Supply Voltage 12 VDC, PoE (IEEE 802.3af)
- Power Consumption Max. 7 W
Mechanical
- Material Stainless Steel
- Dimensions 265 x 152 x 189.6 mm (10.4 x 6 x 7.5 inch)
- Weight 5700 g (12.57 lb)
Packaging
- Package Dimensions 385 x 190 x 180 mm (15.2 x 7.5 x 7.1 inch)
- Package Weight 6400 g (6.4 lbs)
- Packaging Unit 6
- Bulk Package Dimensions 615 x 410 x 510 mm (24.2 x 16.1 x 20.1 inch)
- Bulk Package Weight 20500g (45.19 lbs)
