GU-CI-AC5612M

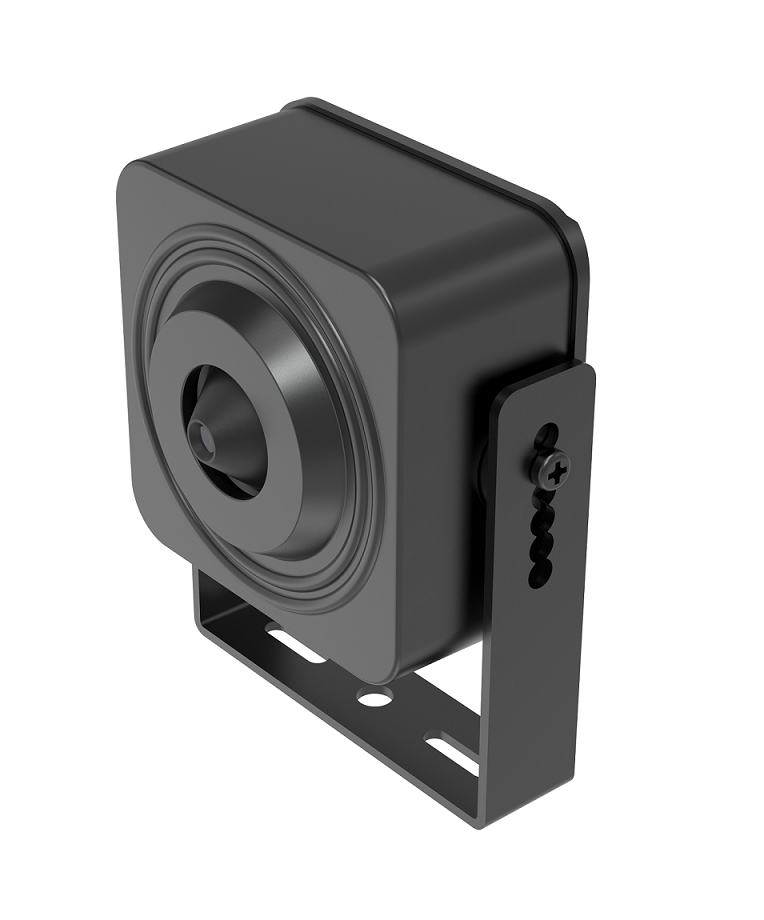

5 MP Mini IP-Camera 2.0 mm

Add to Wishlist
Add to Compare

Many AI functions integrated such as face detection, intrusion detection, object counting, queues, heat map and much more
Reduction of unwanted alarms (false alarms) by classifying target objects using deep learning algorithms. This significantly reduces false alarms generated by objects other than people or vehicles. This makes finding events easier and saves hard drive capacity
5 Megapixel IP Camera with real time video streaming
Privacy Zone Masking Function

Add to Wishlist
Add to Compare

Specifications

Camera
- Image Sensor 1/2.7” progressive Scan CMOS
- Resolution (MP) 5 MP
- Video Resolution 2880 x 1620
- Sensitivity Colour 0.004 Lux @ F1.6 (AGC ON)
- Sensitivity B/W 0 Lux with white light on
- Shutter Speed 1/5 ~ 1/20000 s
- White Balance Auto, Manual
Lens
- Lens Focal Length 2 mm
- Iris F-Number F2.8
- Lens Drive Type Fixed Iris
- Field of View 96° (horizontal), 52° (vertical), 113° (diagonal)
Video
- Col/B&W Auto (Electronic) , Colour , B&W
- Wide Dynamic Range 120 dB
- Image Enhancement BLC, 3D DNR, HLC
- Image Settings Corridor mode, Saturation, Brightness, Contrast, Sharpness and white balance adjustable by client software or web browser
- Day/Night Switch Support auto, scheduled, day, night
- Privacy zones 4 zones, rectangle
Audio
- Audio Compression G.711
Frame Rate
- Main Stream 50 Hz: 25 fps (2880 x 1620, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720) 60 Hz: 30 fps (2880 x 1620, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720)
- Sub- Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 320 × 240) 60 Hz: 30 fps (1280 × 720, 640 × 480, 320 × 240)
- 3rd Stream 50 Hz: 25 fps (640 x 480, 320 x 240) 60 Hz: 30 fps (640 x 480, 320 x 240)
Network
- Functions One-key reset, anti-flicker, three streams, mirror, password protection, privacy mask, IP-address filter
- Video Compression H.264, H.264+, H.265, H.265+ , MJPEG
- Streaming Method Unicast, Multicast
- Web Browser Safari V12.1+, Mozilla Firefox V.52+, Google chrome V.57+, MS Edge V.79+
- Network Protocol TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, SNMP, 802.1X, IPv4/IPv6, PPPoE
- Cyber Security Different password levels, password protection, password change prompt at first startup, complicated password, HTTPS encryption, digest authentication for HTTP/HTTPS , IP address filter, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.0, TLS 1.1 & TLS 1.2, TLS 1.2 with updated cipher suites including AES 256 encryption, Brute Force Delay Protection, Signed Firmware.
I/O Interface
- Audio Input/Output 1-ch audio input and 1-ch audio output
- Network Interface 1x 10, 100 Base T (Ethernet), TX (RJ-45)
Intelligent Functions
- Audio Detection Detects unusual noises: dogs barking, babies crying, gunshots, sudden sound increase and decrease
- Crowd Density Counts people in a predefined area. The area, the maximum number of people in it can be set
- Deep Learning Analytics Face Capture, Line crossing detection, intrusion detection, region entrance detection, region exiting detection, human, vehicle
- Face Detection Human face appears in the image can be detected and trigger event action
- Face Recognition Detects and recognizes faces by comparing them to stored portrait images. Actions can be triggered via the allowed, blocked and other list
- Heat Map Visualizes the number of people in the surveillance area over a period of time with a simple and user-friendly color scheme
- Object Classification Detects people, non-motorized vehicles and/or vehicles in full screen or a defined image section
- Intrusion Detection People, motorized vehicles or non-motorized vehicles, enter, exit or drive over a predefined virtual area, up to 4 rules are supported
- License Plate Recognition Detects and recognizes car number plates. Data- import- export function, actions can be triggered via the allowed, blocked and other list
- Object Counting People, motorized vehicles, non-motorized vehicles or other movements are counted when crossing a virtual line and the result is displayed on the screen in real time
- Line Crossing Cross a pre-defined virtual line with target classification Pedestrian, Motor vehicle and non-motozed Vehicle. 4 different rules can be configured.
- Object Removal Detects within a predefined, adjustable area objects that were originally placed in a specific location and have been removed, as well as objects that have been left behind there
- People & Vehicle Detection Adjustable whether people, motorized or non-motorized vehicles should be detected.
- Queue Length Counts people in a predefined area and measures service time. The area, the maximum number of people in it and the maximum service time can be set
- Motion Detection Adjustable whether people or motorized vehicles or only movements should be detected. The detection area and sensitivity can also be adjusted.
- Region Entrance Enter a pre-defined virtual region from the outside place
- Region Exiting Exit from a pre-defined virtual region
- Tamper Protection Scene change
- Limits of intelligent functions Only one of the AI functions can be selected at a time
- Event Source Video tampering, network disconnected, IP address conflicted
Approvals
- Regulation CE, EAC, FCC, RoHS Compliant
- Standard ONVIF (Profile S, Profile G, Profile T, Profile M), SDK/API
Environmental
- Operating Temperature -35 °C ~ 60 °C (-31 °F ~ 140 °F)
- Humidity Less than 90%, non condensing
Electrical
- Supply Voltage 12 VDC, PoE (IEEE 802.3af)
- Power Consumption Max. 3.2 W
Mechanical
- Dimensions 38 × 38 × 20 mm (1.5 × 1.5 × 0.8")
- Weight 128 g (0.3 lb)
