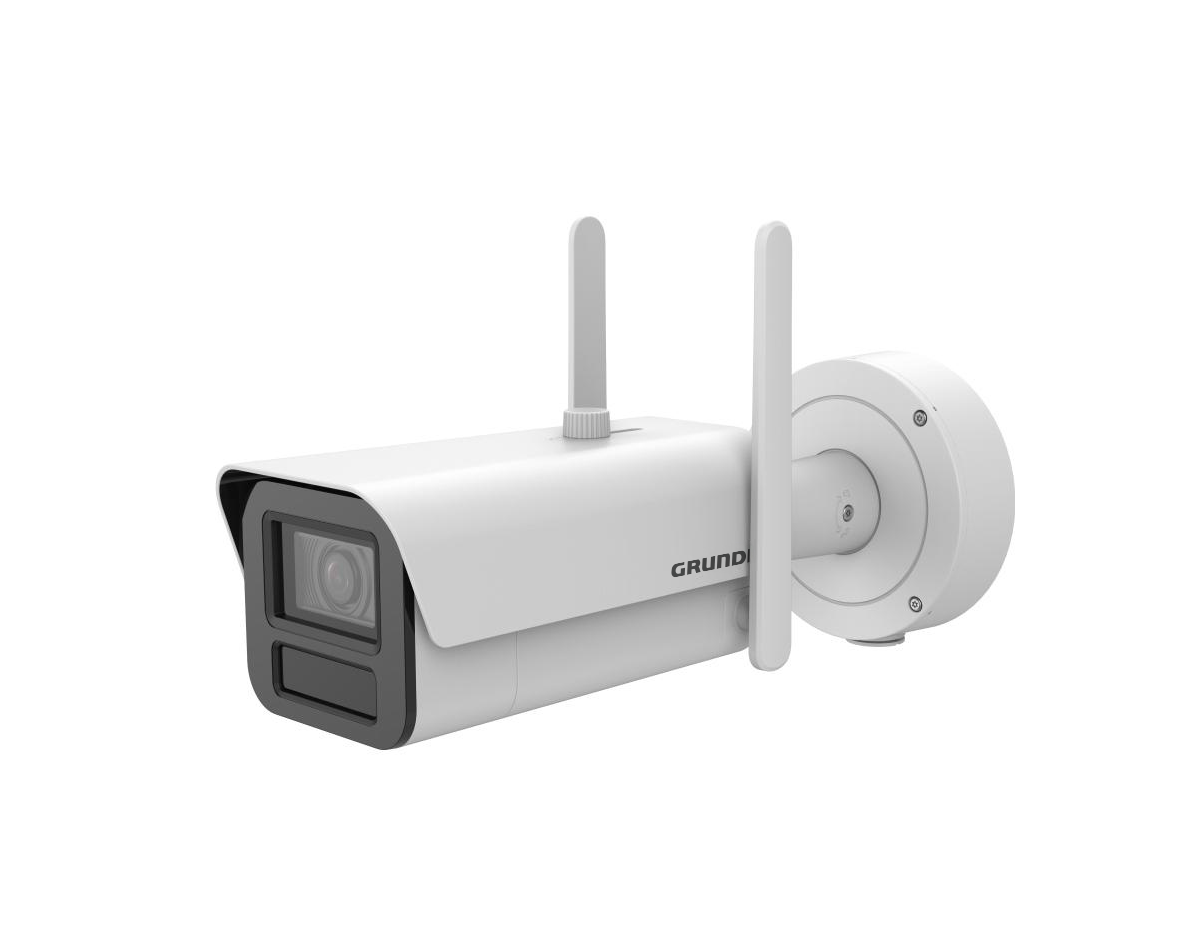

GD-CI-BT8339TH

8 MP Bullet IP-Camera 8~32 mm LPR

Add to Wishlist
Add to Compare

Deep Learning - Human and Vehicle Analysis: Self learning human and vehicle classification improves unwanted alarm filtering
License Plate Recognition (LPR) software included. Data import and export function, blocklist and whitelist or extended analytics functions
Excellent low-light performance
3 Axis Gimbal for wall and ceiling mount

Add to Wishlist
Add to Compare

Specifications

Camera
- Image Sensor 1/1.8" progressive Scan CMOS
- Resolution (MP) 8 MP
- Video Resolution 3840 × 2160
- Sensitivity Colour 0.0005 Lux @ F1.2 (AGC ON)
- Sensitivity B/W 0.0001 Lux @ F1.2 (AGC ON)
- Shutter Speed 1 ~ 1/100,000 s
- Slow Shutter Support
- White Balance Manual, AWB1, AWB2, Locked WB, Fluorescente lamp, Incandescent lamp, Warm light, Natural light
Lens
- Lens Focal Length 8 ~ 32 mm motorized, autofocus
- Iris F-Number F1.7 ~ 1.73
- Lens Drive Type P-Iris
- Field of View 40° ~ 14° (horizontal), 27° ~ 10° (vertical), 49° ~ 17° (diagonal)
Illuminator
- Max. IR Distance Up to 100 m
- Wavelength 850 nm
Video
- Col/B&W On, Off, Auto, IR-cut filter removable (ICR) with blue glass module to reduce ghost phenomenon
- Wide Dynamic Range 140 dB
- Image Enhancement BLC, 3D DNR, Defog, EIS, HLC
- Image Settings Rotate mode, Saturation, Brightness, Contrast, Sharpness and white balance adjustable by client software or web browser
- Day/Night Switch Support auto, scheduled, day, night, triggered by alarm in
- Privacy zones 8 zones, rectangle, blackened or mosaic
Audio
- Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
- Environment Noise Filtering yes
General
- DRI Range Detection: Wide 218 m Tele 580 m Observation: Wide 86.5 m Tele 230 m Recognition: Wide 43.6 m Tele 116 m Identification: Wide 21.8 m Tele 58 m The DORI (detect, observe, recognize, identify) distance gives the general idea of the camera ability to distinguish persons or objects within its field of view. It is calculated based on the camera sensor specification and the criteria given by EN 62676-4: 2015.
Frame Rate
- Main Stream 50 Hz: up to 50 fps (3840 × 2160, 3072 × 1728, 2560 x 1520, 1920 x 1080, 1280× 720) up to 100 fps (1920 x 1080) 60 Hz: up to 60 fps (3840 × 2160, 3072 × 1728, 2688 x 1520, 1280× 720) up to 120 fps (1920 x 1080) * High frame rate is only supported under monitoring mode
- Sub- Stream 50 Hz: 25 fps (1280 × 720, 704 x 576, 640 × 480) 60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480)
- 3rd Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
- 4th Stream 50 Hz: 25 fps (1280 x 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1280 x 720, 704 × 480, 640 × 480)
- 5th Stream 50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480)
Network
- Users 3 Levels: Administrator, Operator and User
- Number of Clients Up to 32, 20 simultaneously
- Functions One-key reset, anti-flicker, five streams, heartbeat, mirror, password protection, privacy mask, watermark, IP-address filter
- Video Compression H.264, H.264+, H.265, H.265+ , MJPEG
- Region of Interest Support four fixed region for each stream, and dynamic face tracking
- H.264 code profile Baseline Profile / Main Profile / High Profile
- Bit Rate 32Kbps ~ 16Mbps, adjustable
- Scalable Video Coding (SVC) supported
- SD Memory Micro SD/SDHC/SDXC card slot with ANR (up to 1TB), NAS (Support NFS, SMB/CIFS)
- Client software C-WERK Viewer, SCMS, IOS App, Android App (SCMS)
- Web Browser Plug-in required live view: IE10/IE11 Non Plug-in live view: Chrome 57+, Mozilla Firefox 52+, EDGE 89+ Local Service: Chrome 57+, Firefox 52+, EDGE 89+
- Network Protocol TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SNMP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, PPPoE, Bonjour, SFTP, SRTP, SSL/TLS
- Cyber Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), Watermark, IP-address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, TPM 2.0, AES128/256
I/O Interface
- Audio Input/Output 1-ch audio input and 1-ch audio output
- Alarm Input/Output 2 alarm-inputs, 2 alarm-outputs (up to 24 VDC 1 A)
- Network Interface 1x 10, 100, 1000 Base T, TX (RJ-45)
- Interfaces 1x RS485, 1x Wiegand
Intelligent Functions
- Audio Detection Sudden audio increase, decrease
- Deep Learning Analytics Line crossing detection, intrusion detection, human and vehicle object classification
- Face Detection Human face appears in the image can be detected and trigger event action
- Face Recognition Detects and recognizes faces by comparing them to stored portrait images. Actions can be triggered via the allowed, blocked and other list
- Heat Map Visualizes the number of people in the surveillance area over a period of time with a simple and user-friendly color scheme
- Object Classification Detects people, non-motorized vehicles and/or vehicles in full screen or a defined image section
- Intrusion Detection Enter and loiter in a pre-defined virtual region, up to 4 pre-defined virtual regions supported
- Object Counting Entrance and Exit of people number is accounted and shown on screen in real time
- Line Crossing Cross a pre-defined virtual line, up to 4 pre-defined virtual lines supported
- Queue Length Counts people in a predefined area and measures service time. The area, the maximum number of people in it and the maximum service time can be set
- Motion Detection Adjustable whether people or motorized vehicles or only movements should be detected. The detection area and sensitivity can also be adjusted.
- Region Entrance Enter a pre-defined virtual region from the outside place
- Region Exiting Exit from a pre-defined virtual region
- Tamper Protection Scene change and defocus
- Event Source Video tampering, network disconnected, IP address conflicted, HDD full, HDD error, illegal login, motion detection
- Event Action Send E-mail, trigger alarm output, notify surveillance C-WERK, upload to FTP/NAS, trigger SD-card recording and/or image capture.
Approvals
- Protection Rating IP67 (IEC 60529-2013), IK10 (IEC 62262:2002), NEMA 4X (NEMA 250-2018)
- Regulation CE, FCC, RoHS Compliant
- Standard ISAPI, SDK, ISUP, UCAP, ONVIF (Profile S, Profile G, Profile T, Profile M), SDK/API
Environmental
- Operating Temperature -40 °C ~ 65 °C (-40 °F ~ 149 °F)
- Humidity Less than 95%, non condensing
Electrical
- Surge Protection TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
- Supply Voltage 12 VDC, 24 VAC
- Power Consumption Max. 25 W
Mechanical
- Dimensions Ø 140 × 378 mm (Ø 5.5 × 14.9 inch)
- Weight 2175 g (4.8 lb)
Packaging
- Package Dimensions 425 x 190 x 180 mm (16.7 x 7.5 x 7.1 inch)
- Package Weight 3300 g (7.3 lbs)
- Packaging Unit 6
- Bulk Package Dimensions 615 x 410 x 510 mm (24.2 x 16.1 x 20.1 inch)
- Bulk Package Weight 20500g (45.19 lbs)
