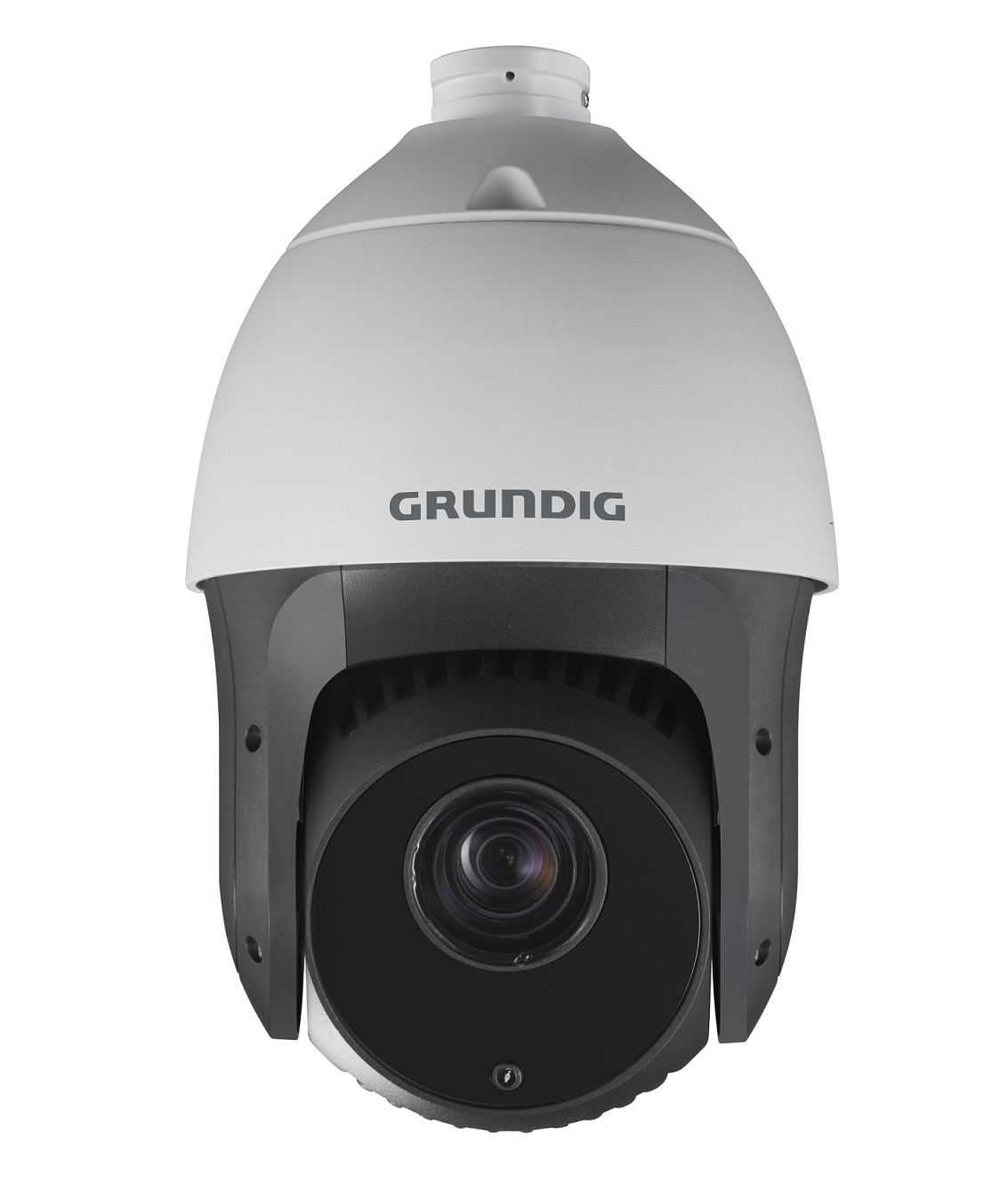

2 MP PTZ Dome TVI-Camera 23x Zoom

GD-CT-AP2247P

2 MP PTZ Dome TVI-Camera 23x Zoom

Add to Wishlist
Add to Compare

2 Megapixel HD-TVI Camera with HD 1080P real time video
23x motorized optical zoom with 16x digital zoom
0 Lux: Integrated LED IR Illuminator viewable distance up to 150m
Power Input AC24V
IR LEDs Integrated with Smart-IR Control

Add to Wishlist
Add to Compare

Specifications

Camera
- Image Sensor 2 Megapixel progressive scan CMOS
- Resolution (MP) 2 MP
- Pixels - Effective 1920 (H) x 1080 (V)
- Sensitivity B/W 0 Lux LED IR on
- Shutter Speed 1 ~ 1/10.000 s
- White Balance Auto, Manual, Indoor, Outdoor, ATW
Lens
- Iris F-Number F1.4 ~ F3.5
- Lens Drive Type Auto Iris (DC)
- Digital Zoom 16x
- Field of View 48.8° (Wide) to 2.3° (Tele)
Illuminator
- Max. IR Distance Up to 150m
- Wavelength 850 nm
Video
- Video Standard PAL, NTSC
- Col/B&W Auto , Color , B&W, IR-cut filter removable (ICR)
- Wide Dynamic Range Digital WDR
- Image Enhancement BLC, 3D DNR
- Frame Rate (Max@Resolution) PAL: 1080p@25fps NTSC: 1080p@30fps
General
- OSD (On Screen Display) English
- Coaxial control Coaxitron®, CCVC
Pan Tilt Zoom
- Number of Privacy Zones 8 zones, polygonal
- Number of Patrols 8 patrols, up to 32 presets for each patrol
- Tilt Speed Configurable from 0.1°/sec to 120°/sec, Preset Speed: 200°/sec
- Presets 256
- Range Panning 360° endless
- Range Tilting -15° ~ 90° (auto flip) 210° total
I/O Interface
- Video Outputs 1x HD-TVI (BNC) , 1x Composite 1.0Vp-p 75 OHM (BNC)
- Alarm Input/Output 2 inputs, 1 output (up to 12 VDC, 30 mA) , terminal block
Approvals
- Protection Rating IP66 (IEC 60529-2013)
- Regulation CE, EAC, FCC, RoHS Compliant
Environmental
- Operating Temperature -40 °C ~ 60 °C (-40 °F ~ 140 °F)
- Humidity Less than 95%, non condensing
Electrical
- Surge Protection TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
- Supply Voltage 24 VAC, 50, 60Hz
- Power Consumption Max. 30 W
